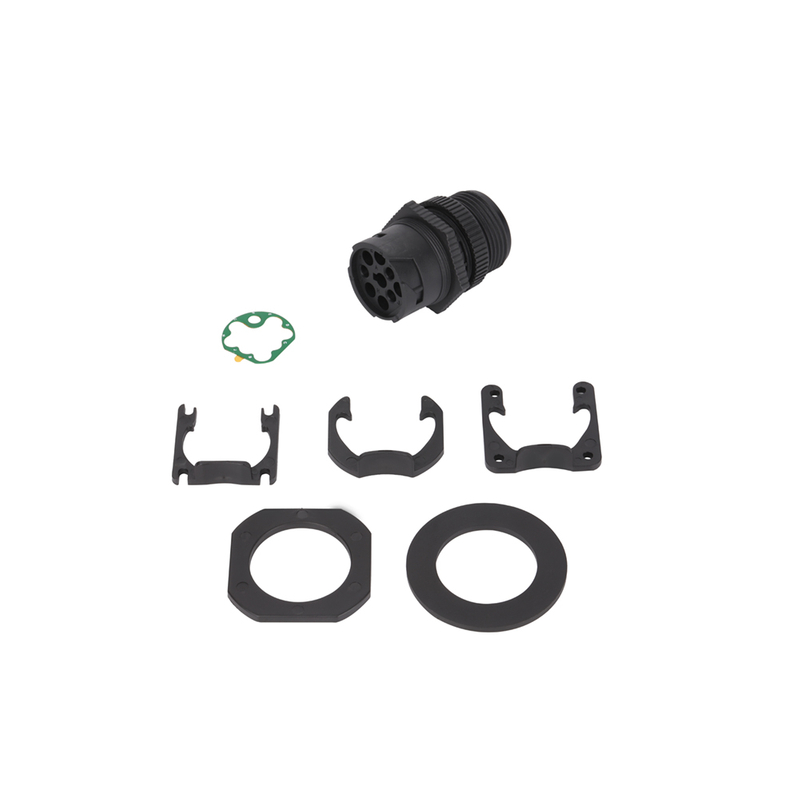

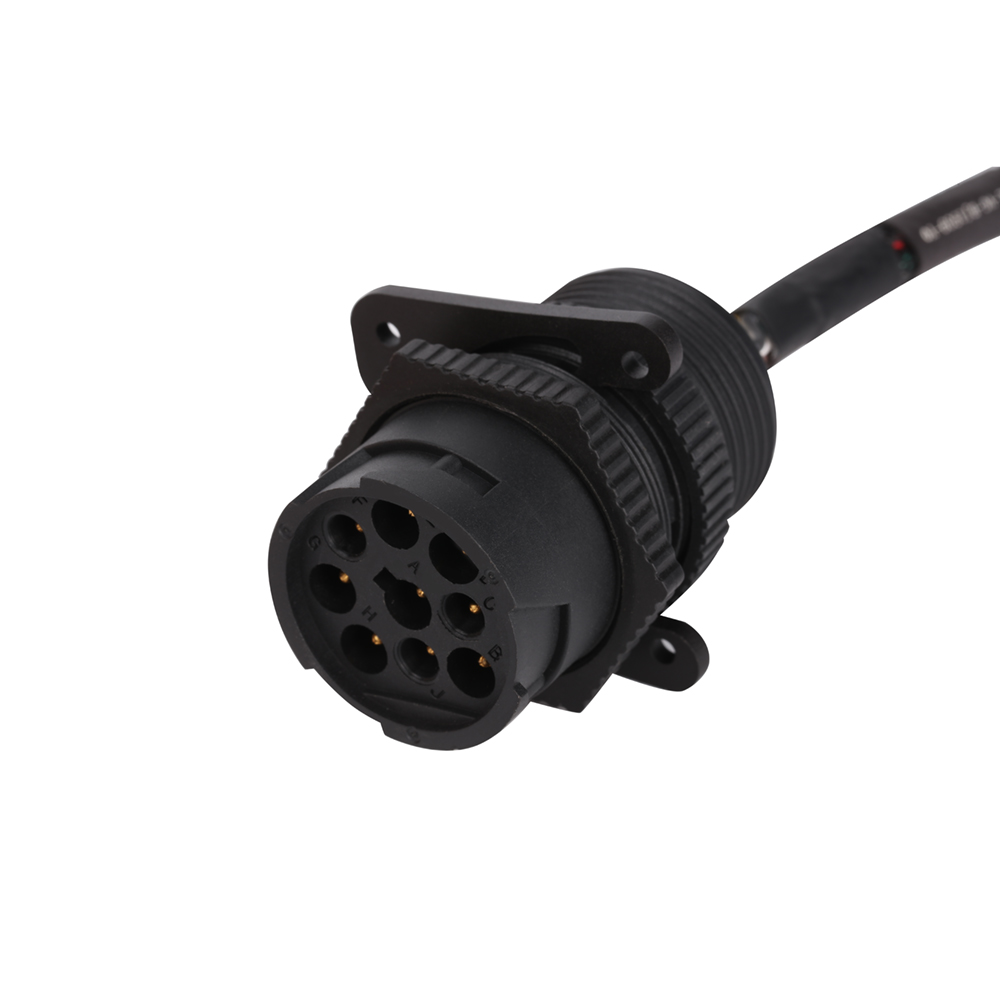

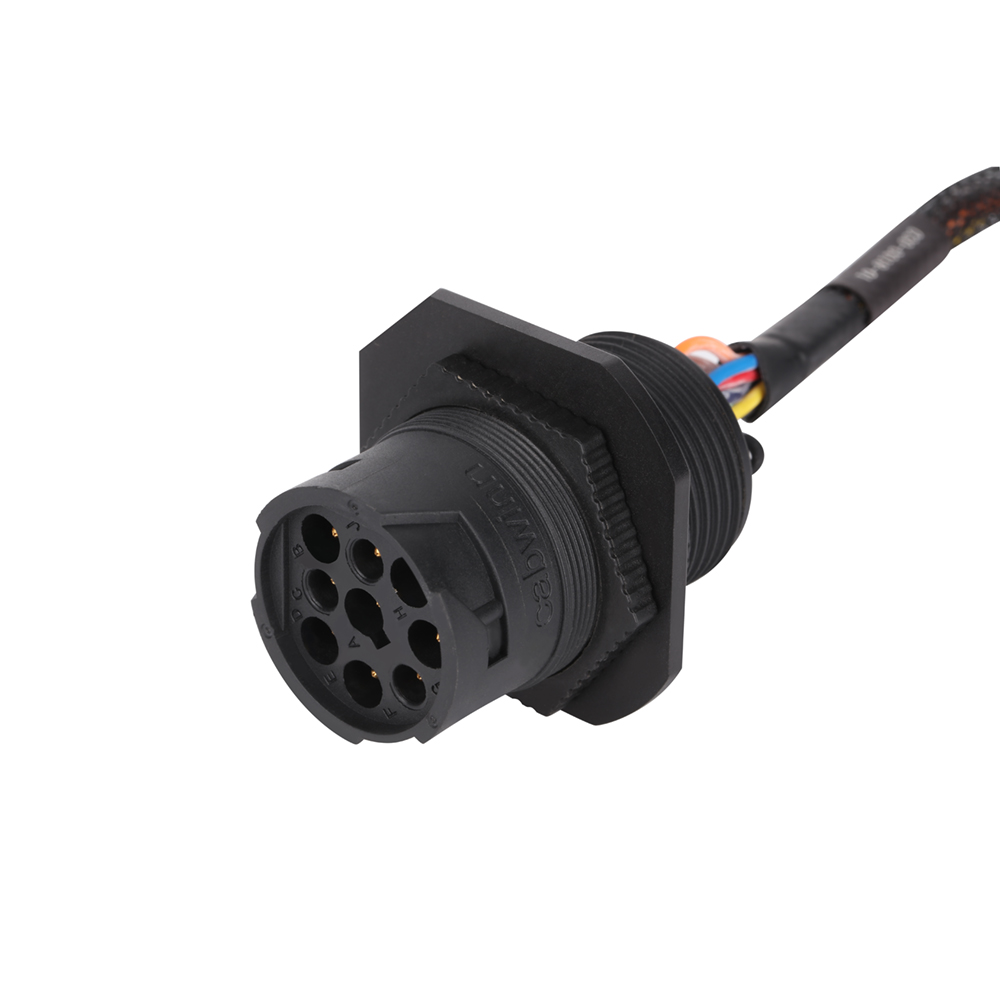

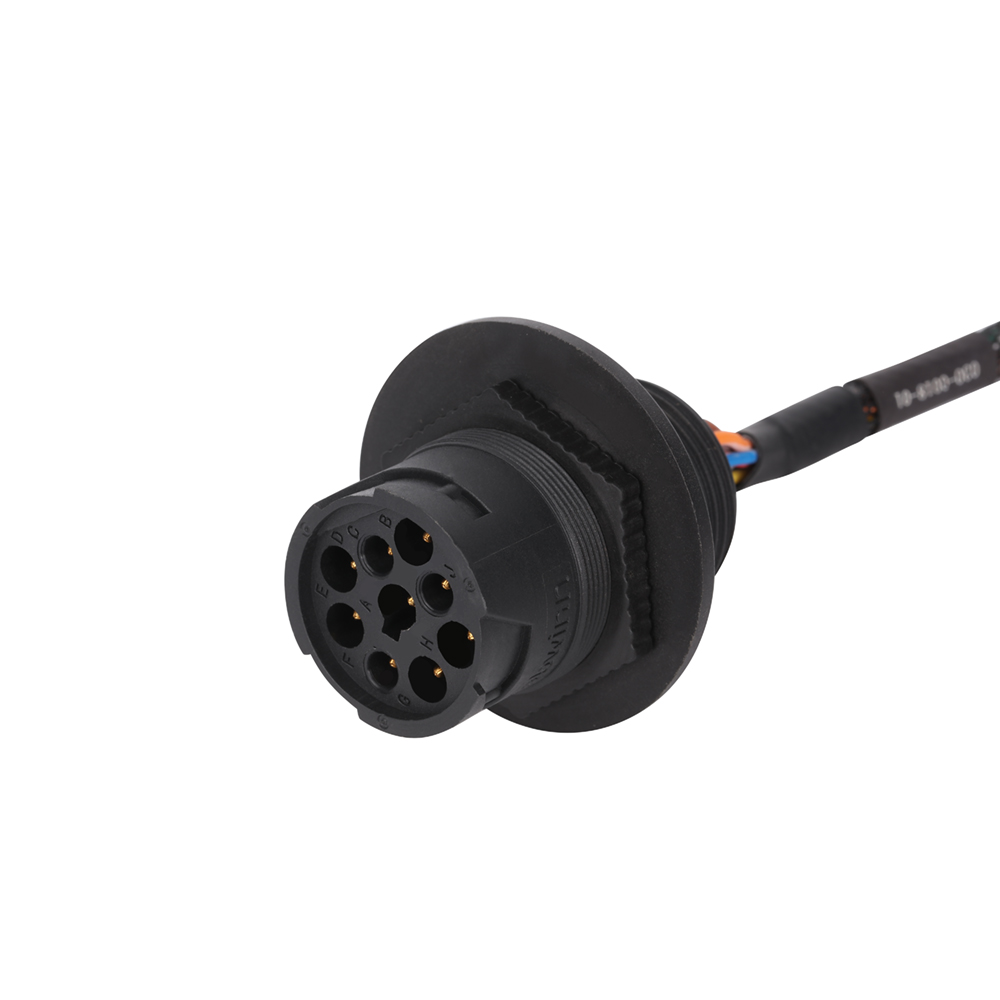

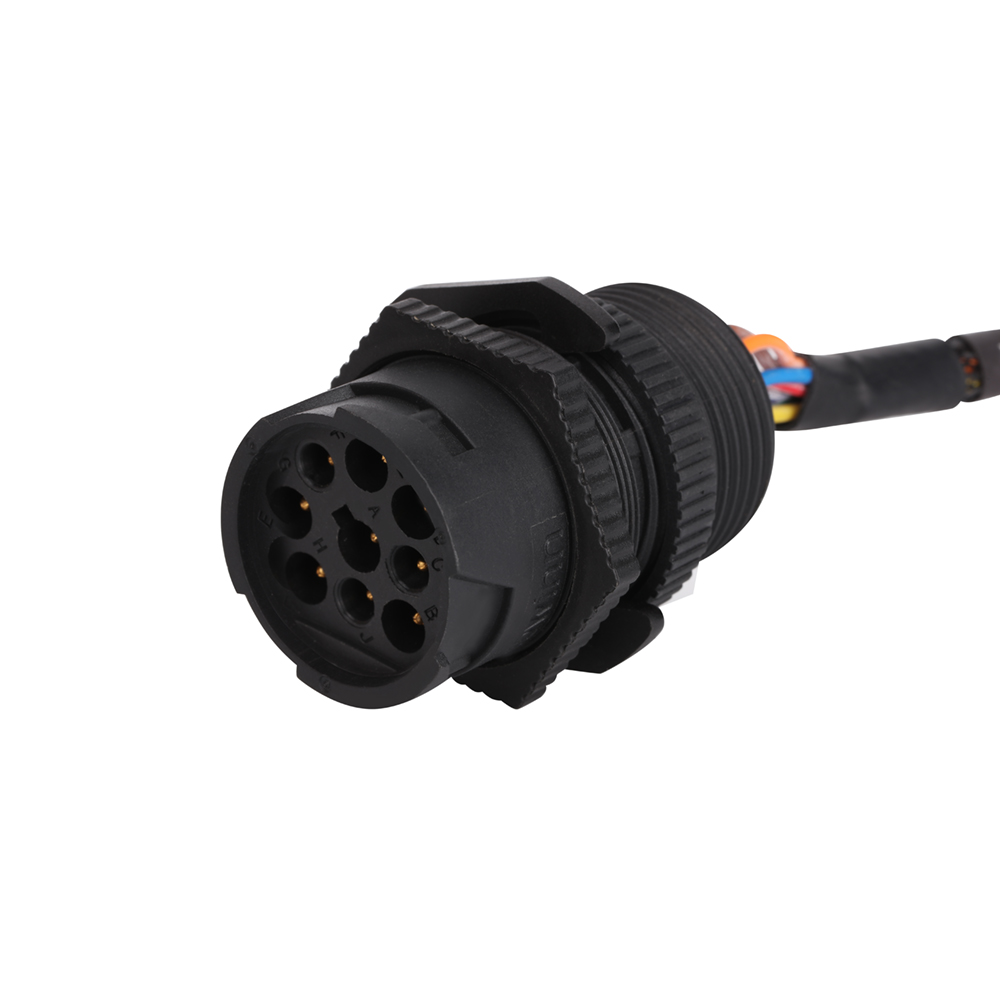

J1939-9P Female ELP Black Connector Kit Connecting Plug

Pin assignment or pinout


The pin assignment or pinout of 9-Pin J1939 female connector is like this:

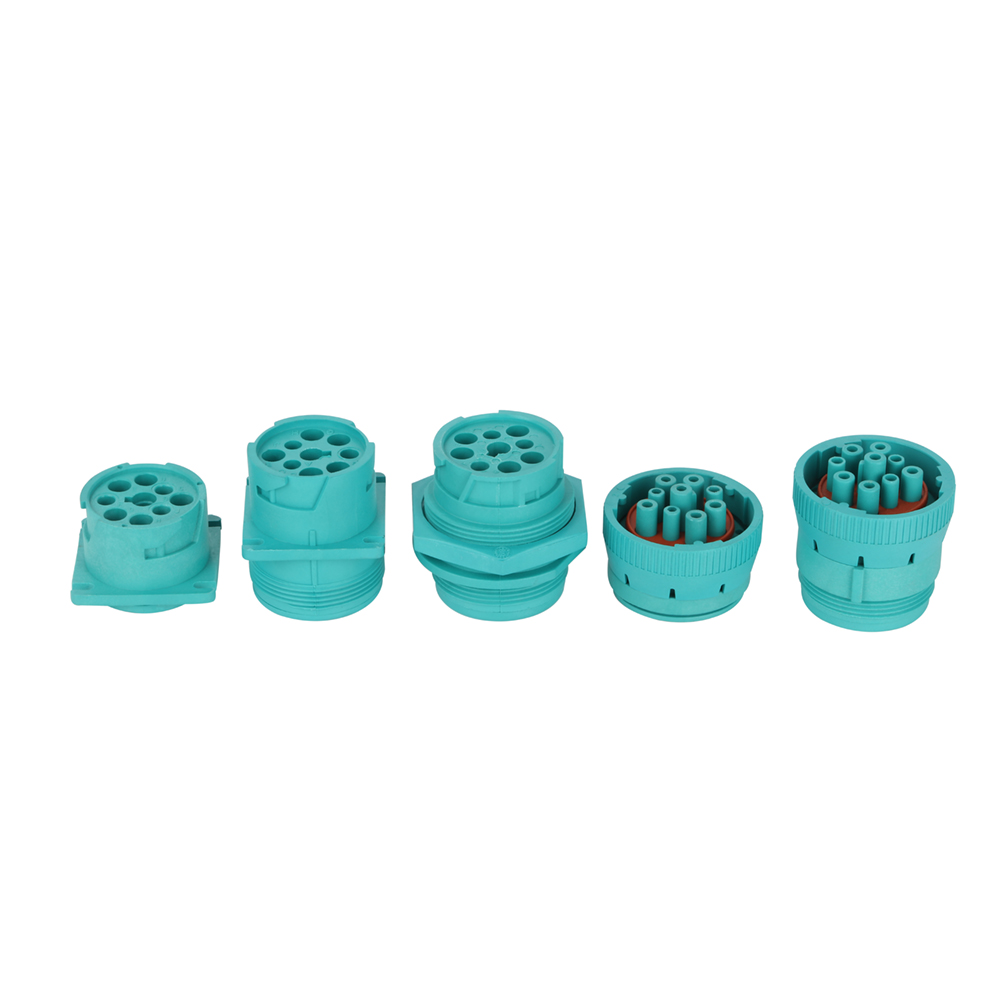

Green Type 2 Female J1939 9 Pin Connector , J1939 Deutsch Connector



The central pin is Pin A. The pin that the key tab of PIn A faces to is Pin F. The sequence of the pins B to J is clockwise.


Application

These 9-Pin J1939 female connectors can be used to manufacture 9-Pin J1939 cab
